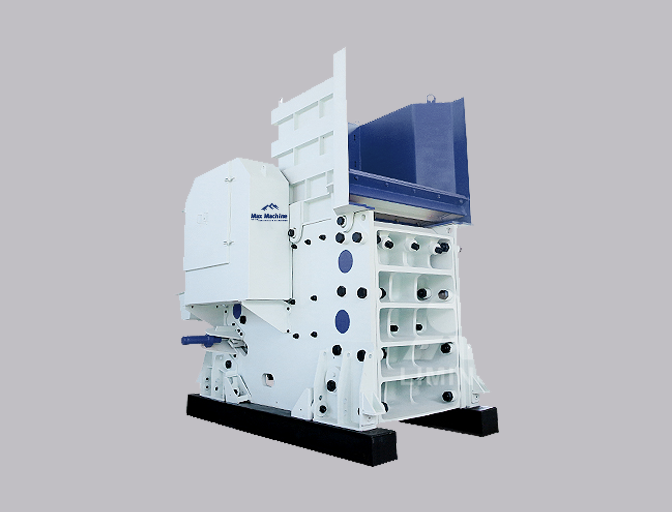

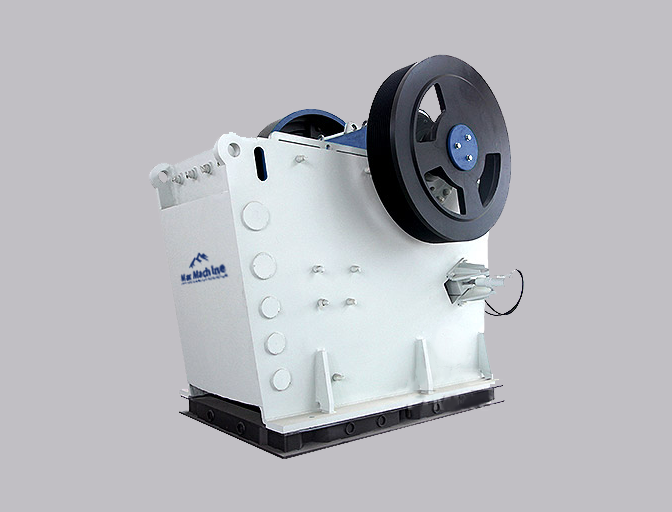

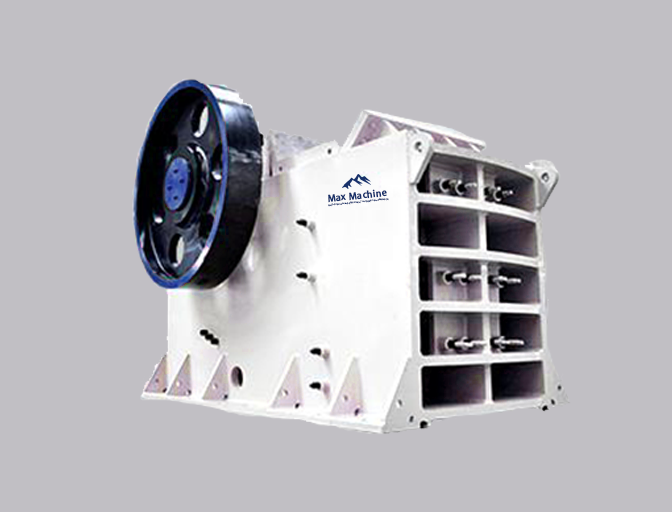

Jaw Crusher

A Jaw Crusher is a robust and widely used type of primary crusher designed to reduce large-sized rocks, ores, and other materials into smaller, more manageable sizes. It is known for its simple design, rugged construction, and ability to handle hard and abrasive materials.

Contact Now

Working Principle

The working principle of a jaw crusher is based on compressive force. It consists of two crushing jaws, one fixed jaw and one movable jaw(swing jaw), arranged in a V-shape. The movable jaw is driven by an eccentric mechanism, causing it to swing back and forth against the fixed jaw. Material fed into the crushing chamber is progressively crushed as it moves downwards between the jaws. The crushed material is discharged through an opening at the bottom, the size of which can be adjusted to control the output size.

Applications

Mining

Primary crushing of various ores such as iron ore, copper ore, gold ore, manganese ore, etc., to reduce the size for subsequent crushing stages or processing.

Quarrying

Crushing rocks like granite, basalt, limestone, and gravel to produce aggregates for construction purposes (roads, concrete, etc.).

Construction and Demolition Waste

Crushing concrete, asphalt, and other construction and demolition debris for recycling and reuse.

Metallurgy

Pre-crushing of raw materials before feeding them into other crushing or grinding equipment.

Coal Industry

Initial crushing of coal before further processing.

Chemical Industry

Crushing certain raw materials used in chemical processes.

Technical Parameters

General Capacity Ranges

Type	Capacity Range	Application
Small Jaw Crushers	1-50 t/h	Laboratory settings, small-scale operations
Medium-Sized Jaw Crushers	50-300 t/h	Medium-sized quarries and mining operations
Large Jaw Crushers	300-1000+ t/h	Large-scale mining and quarrying operations

Detailed Model Parameters

Model	Feed in opening size(mm)	Max feed size(mm)	Discharge size(mm)	Capacity(t/h)	Rotary speed of eccentric shaft(r/min)	Power (kw)	Weight (t)	Overall dimension(L×W×H)(mm)
PE-150×250	150×250	125	10-40	1-3	250	5.5	0.8	720×660×850
PE-200×300	200×300	180	15-50	2-6	260	7.5	1.2	910×750×990
PE-200×350	200×350	180	18-70	3-10	260	11	1.5	1000×870×990
PE-250×400	250×400	210	20-60	5-20	300	18.5	2.8	1300×1090×1270
PE-400×600	400×600	340	40-100	16-60	275	30	7	1730×1730×1630
PE-500×750	500×750	425	50-100	40-110	275	55	12	1980×2080×1870
PE-600×900	600×900	500	65-160	50-180	250	75	17	2190×2206×2300
PE-750×1060	750×1060	630	80-140	110-320	250	90	29	2660×2430×2800
PE-900×1200	900×1200	750	95-165	220-450	200	110	52	3380×2870×3330
PE-1000×1200	1000×1200	850	195-265	315-500	200	110	55	3480×2876×3330
PE-1200×1300	1200×1300	1000	180-330	400-650	220	200	62	4538×2984×3959
PE-1200×1500	1200×1500	1020	150-350	400-800	180	250	80	4200×3300×3500
PE-1500×1800	1500×1800	1200	220-350	450-1000	180	280	122	5160×3660×4248
PEX-150×750	150×750	120	18-48	8-25	320	15	3.8	1200×1530×1060
PEX-250×750	250×750	210	25-60	13-35	330	30	5.5	1380×1750×1540
PEX-250×1000	250×1000	210	25-60	16-52	330	30	7	1560×1950×1390
PEX-250×1200	250×1200	210	25-60	20-61	330	37	9.7	2140×1660×1500
PEX-300×1300	300×1300	250	20-90	16-105	300	55	15.6	2720×1950×1600
PEX-300×1500	300×1500	250	25-120	60-140	300	75	16.5	2920×1950×1600
PEX-500×1500	500×1500	350	25-120	50-160	300	90	20	2360×2660×2105
PEX-500×2000	500×2000	350	25-120	100-220	300	160	23	232360×3160×2105
